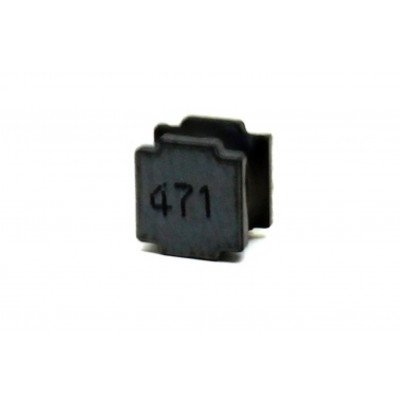

470uH 250mA SMD Coupled Inductor

Description

This is a COILCRAFT LPD6235-474MRB 470uH 250mA Coupled Inductor. It is a Coupled Inductor with a low DCR and high rated current surface mount SMD power inductor. These are lead-free products, RoHS compliant. These inductors are widely used in buck converter, laptop, displays, network communication equipment, and etc.

Features:

1. Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
2. Metallization on ferrite core results in excellent shock resistance and damage-free durability
3. Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI)
4. 30% higher current rating than conventional inductors of equal size
5. Take up less PCB real estate and save more power

Package Includes:

1 x COILCRAFT LPD6235-474MRB 470H 250mA Coupled Inductor

Specifications:

Inductance	470uH
Tolerance(%)	20
Mounting Type	SMD
DC Resistance (DCR)(mΩ) at 20C	1.75
Current Rating (A)	250m
Length (mm)	6
Width (mm)	6
Height (mm)	3.5
Weight (gm)	0.5 each
