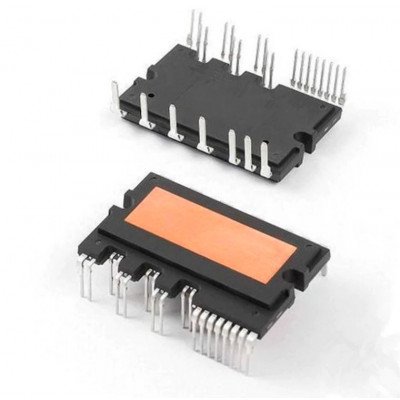

FSBB30CH60 IGBT Module – 600V 30A Power Conversion IGBT Module

Description

The FSBB30CH60 is an advanced smart power module (SPMTM) has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting low power inverter-driven application like air conditioner and washing machine. It combines optimized circuit protection and drive matched to low-loss IGBTs. System reliability is further enhanced by the integrated under-voltage lock-out and short circuit protection. The high speed built-in HVIC provides optocoupler-less single-supply IGBT gate driving capability that further reduce the overall size of the inverter system design. Each phase current of inverter can be monitored separately due to the divided negative dc terminals.

Features:-

• UL Certified No.E209204(SPM27-EA package)

• Very low thermal resistance due to using DBC

• 600V-30A 3-phase IGBT inverter bridge including control ICs for gate driving and protection

• Divided negative dc-link terminals for inverter current sensing applications

• Single-grounded power supply due to built-in HVIC

• Isolation rating of 2500Vrms/min.

Specification:-

Related Document:-

 FSBB30CH60 IGBT Data Sheet
