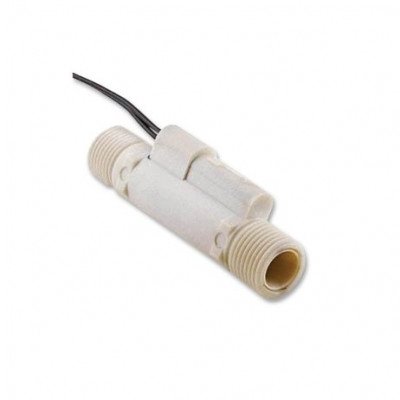

TE CONNECTIVITY Flow Switch, FCS Series, 0.1 l/min to 1.1 l/min, 9.525 mm Port Size, SPST-NO, 250 Vac, 1 A, PPS

TE CONNECTIVITY Flow Switch, FCS Series, 0.1 l/min to 1.1 l/min, 9.525 mm Port Size, SPST-NO, 250 Vac, 1 A, PPS

SKU: ELRB-0022
In Stock

₹1,677

In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Have a Question? Ask a Specialist

+91 90362 76902 Start Live Chat

Category:

Description

The FCS-03 is a Flow Switch Sensor that offers design engineers reed switch reliability (file E125629). The design allows for sensing in line flow of liquid or air. 3/8-inch BSP male threaded fittings.
Suitable for hot and cold potable water. Axis mounting. White PPS housing. Ruthenium contact.UL94-HB Flammability rating -30 to 100C Operating temperature

Features:

  1. Rugged high-grade Noryl
  2. Minimum pressure drop
  3. Operates from a small head of water
  4. Mount in any axis
  5. Suitable for water and air flow switching

Specifications:

  1. Mounting: Any Axis
  2. Housing Material: PPS
  3. Housing Colour: White
  4. Fitting: In Line
  5. Contact Form: A
  6. Contact Material: Ruthenium
  7. Maximum Switching Volts (VAC): 250
  8. Maximum Switching Volts (VDC): 200
  9. Maximum Switching Current (Amp): 1
  10. Maximum Power (Watt): 40
  11. Operate Flow Rate (L/min): 0.6 +/- 0.5
  12. Operate Temperature Range: -30C to +100C

Package Includes:

1 x TE CONNECTIVITY Flow Switch, FCS Series
