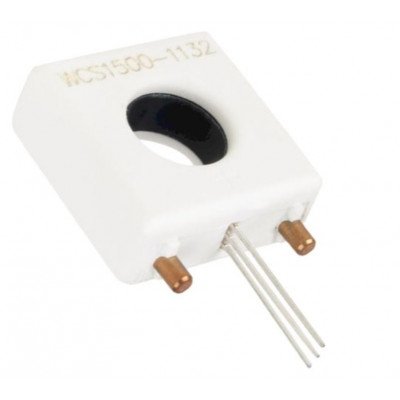

WCS1500 – 200A Hall Effect Base Linear Current Sensor

Description

The WCS1500 consists of a precise, low-temperature drift linear hall sensor IC with temperature compensation circuit and a diameter 9.0mm through hole. Users can use system?s own electric wire by pass it through this hole to measure passing current. This design allows system designers to monitor any current path without breaking or changing original system layout at all. Any current flowing through this hole will generate a magnetic field which is sensed by the integrated Hall IC and converted into a proportional voltage.

Specifications:-

• Zero Current Volt : 2.5V
• Supply Current : 3.5~6.0 mA
• Supply Voltage : 3.0 ~12 V
• Bandwidth : 23kHz
• Conductor Through Hole : 9.0mm2
• Sensitivity : 11mV/A
• Temperature Drift : +/-0.2mV/C
• Operating Temperature : -20~125C

Package Includes:-

1 x WCS1500 – 200A Hall Effect Base Linear Current Sensor
