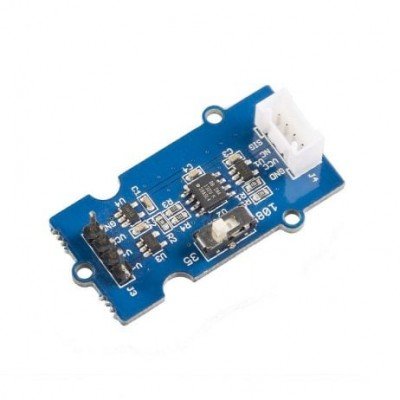

SeeedStudio Grove Differential Amplifier

Description

Find setting up an amplifier IC on the breadboard a troublesome and totally no-need-to-repeat job. This Grove module can save you clutter to settle up such an IC by integrating the whole operating circuit. Its designed for precise differential-input amplification. Input the differential signals of your sensor to this module through the male pins, then your Arduino will get a precisely amplified output from the Grove interface. The gain scale factor is selectable. You can get 35 times or 1085 times amplification via a switch on the board

Features:

1. High amplifying precision
2. Selectable scale factor
3. Can be conveniently read by Arduino
4. Strong input protection: ?40V

Application:

1. Data acquisition
2. Battery operated systems
3. Pressure and temperature bridge amplifiers
4. General-purpose instrumentation

Specification:

1. Operating Voltage: 5.5
2. Input Voltage: 0.1/(Vcc-0.8)/Gain
3. Output voltage: Vcc-0.80
4. Gain: 35/1085

Package Includes :

1 x SeeedStudio Grove Differential Amplifier
